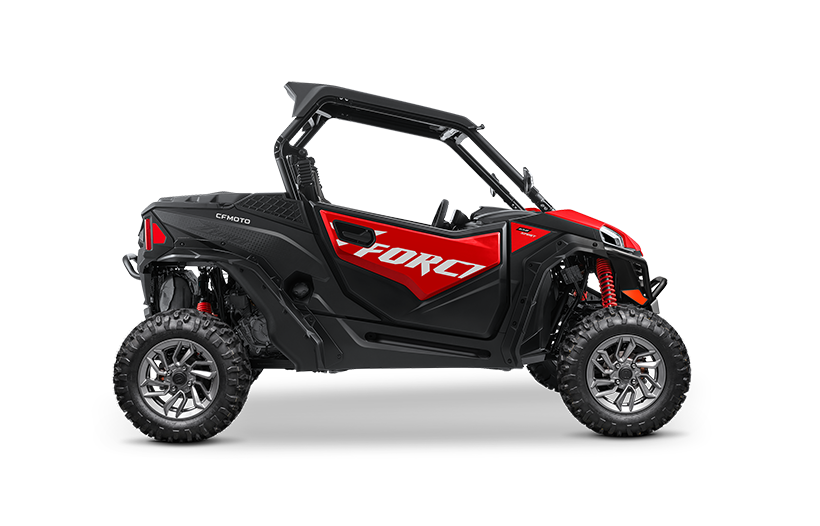

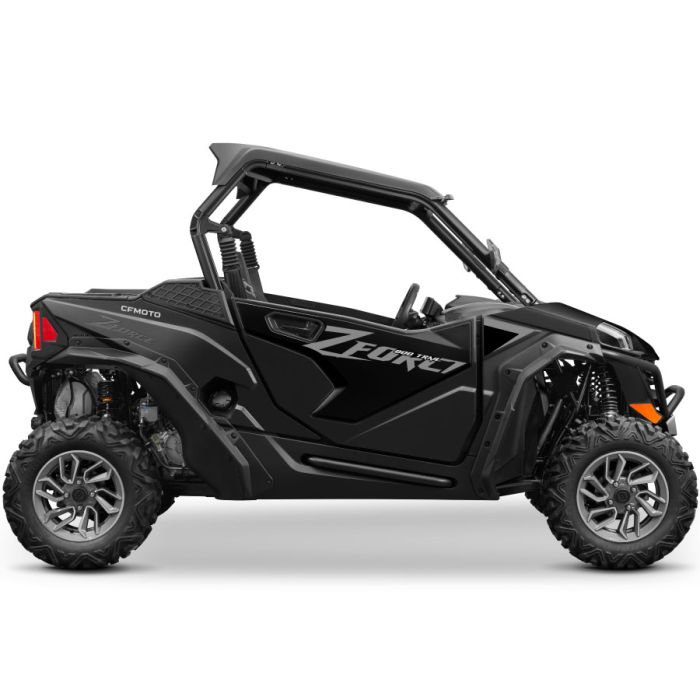

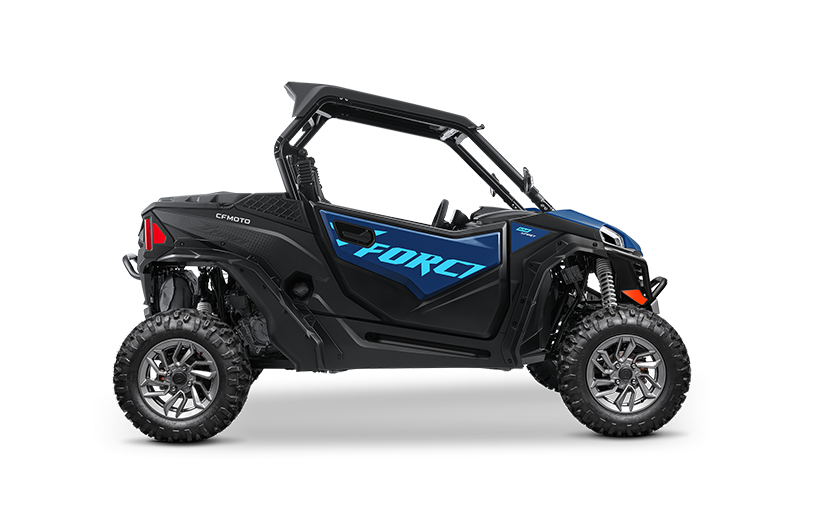

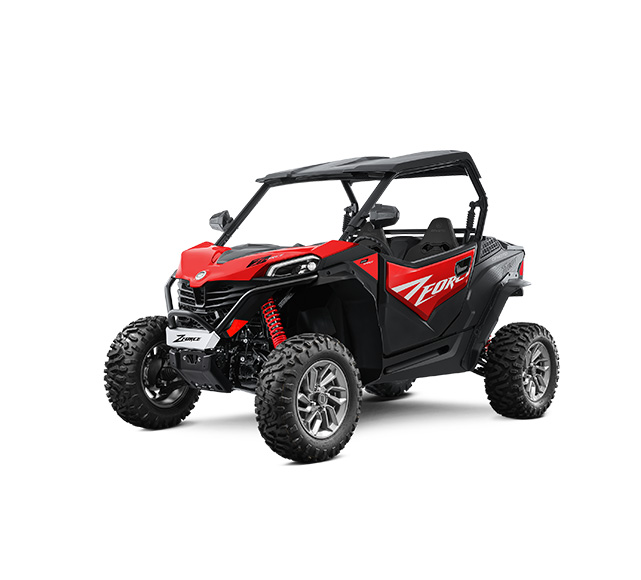

The all-new ZFORCE 800 TRAIL all-terrain off-road vehicle.
Look no further if you want a side-by-side with exceptional handling. With alloy wheels, comfortable sports seats, and dynamic independent Double-A-arm suspension, the promise of adventure at an unbeatable price is here for you. The ZFORCE 800 TRAIL is the ideal vehicle to master the trails.
Powerful and capable of anything
Equipped with an 800cc liquid-cooled V-twin engine.
It delivers 32kW of peak power and 55Nm of torque.
It features dual power modes: Sport and Standard.
Sporty Performance, Dynamic Driving Control

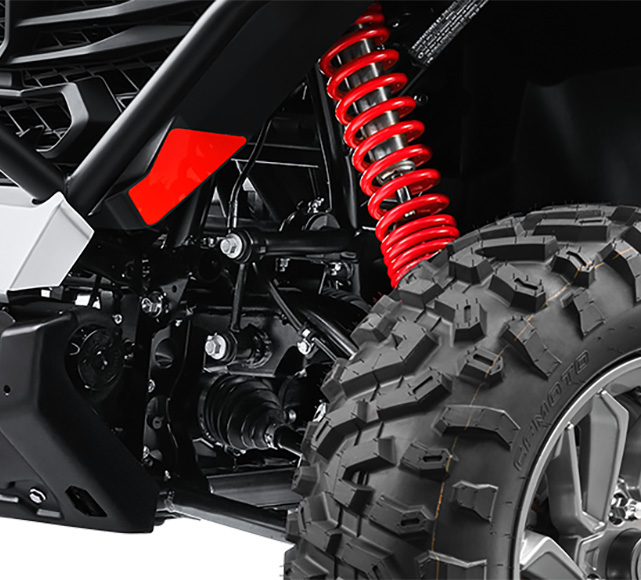

Independent double A-arm suspension with 307mm of travel; independent double A-arm rear suspension with linkage, 334mm of travel.
Equipped with piggyback airbag shocks with adjustable compression and rebound damping.
10.5m minimum turning circle for smooth maneuvering.
Detailed Control, Comfortable Riding

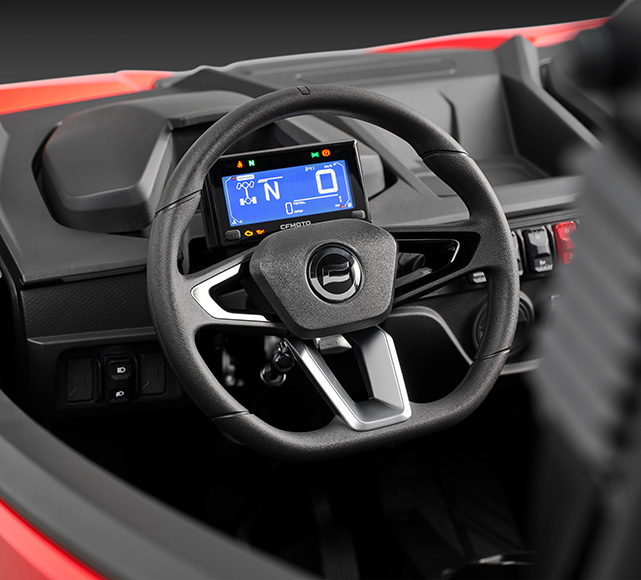

The TFT multi-function instrument panel provides a clear and intuitive display.
Electronic two-wheel drive/four-wheel drive switching allows for effortless handling in diverse road conditions.
Multiple settings for instant comfort

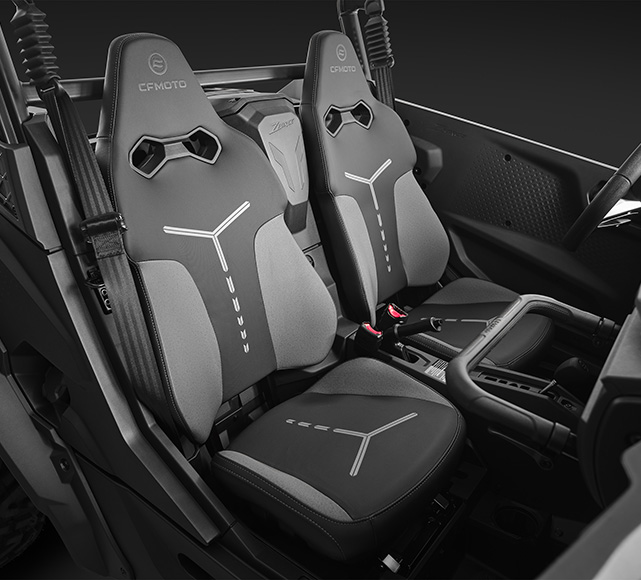

The one-piece sports-style seat offers excellent support and comfort. The driver's seat can be adjusted 95mm fore and aft for optimal ergonomics, ensuring a safe and comfortable driving experience.
The steering wheel is adjustable to accommodate different driver sizes.
Safe protection, steady progress
Three-point seatbelts provide greater comfort and safety.
Half-door design with protective features further enhances safety.

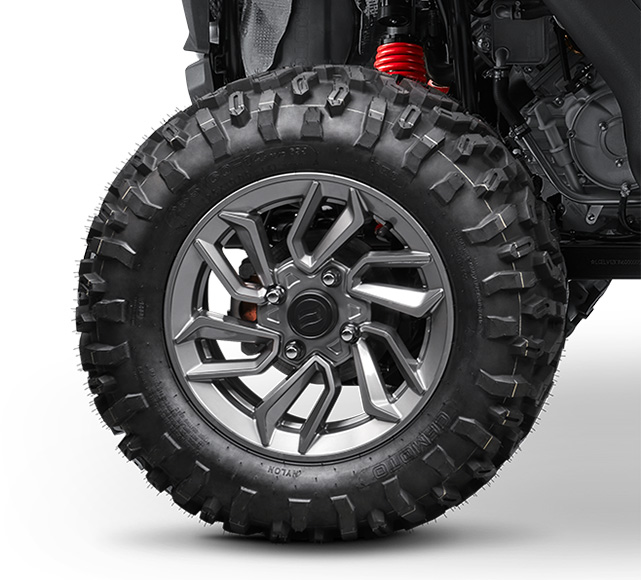

Stylish 14-inch alloy wheels with 26-inch tires.
A high-strength roll cage provides constant safety and all-around protection.

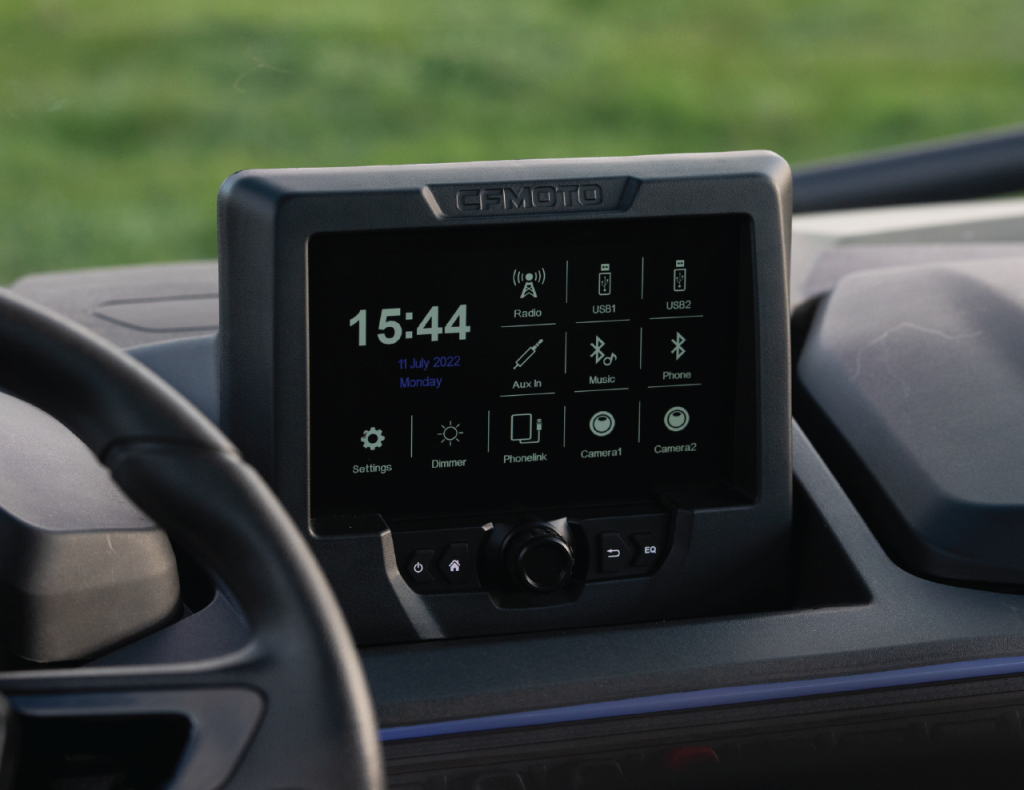

SOUND SYSTEM
Enjoy an exceptional sound experience thanks to our audio system, which includes a touch screen, Apple and Bluetooth controls, a 320W amplifier, a central LED screen, two speakers, an additional amplifier, and an antenna.

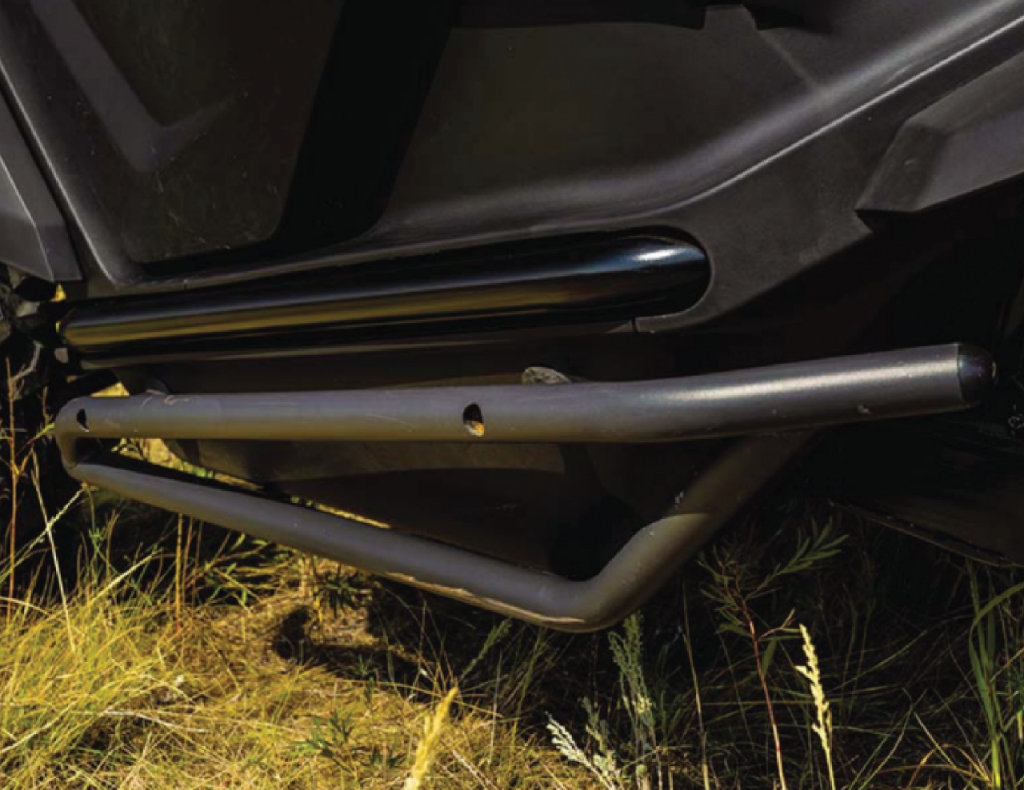

SIDE PROTECTION BARS
Provide strong side protection for your side-by-side! With a 38mm diameter and a wall of 2mm, this steel bar features a durable coat of black powder.
WINDSHIELD
Made of impact-resistant polycarbonate, it guarantees excellent visibility and resistance to UV rays and bad weather without yellowing. Protecting from external elements, their installation is easy thanks to CF Connect clamps.

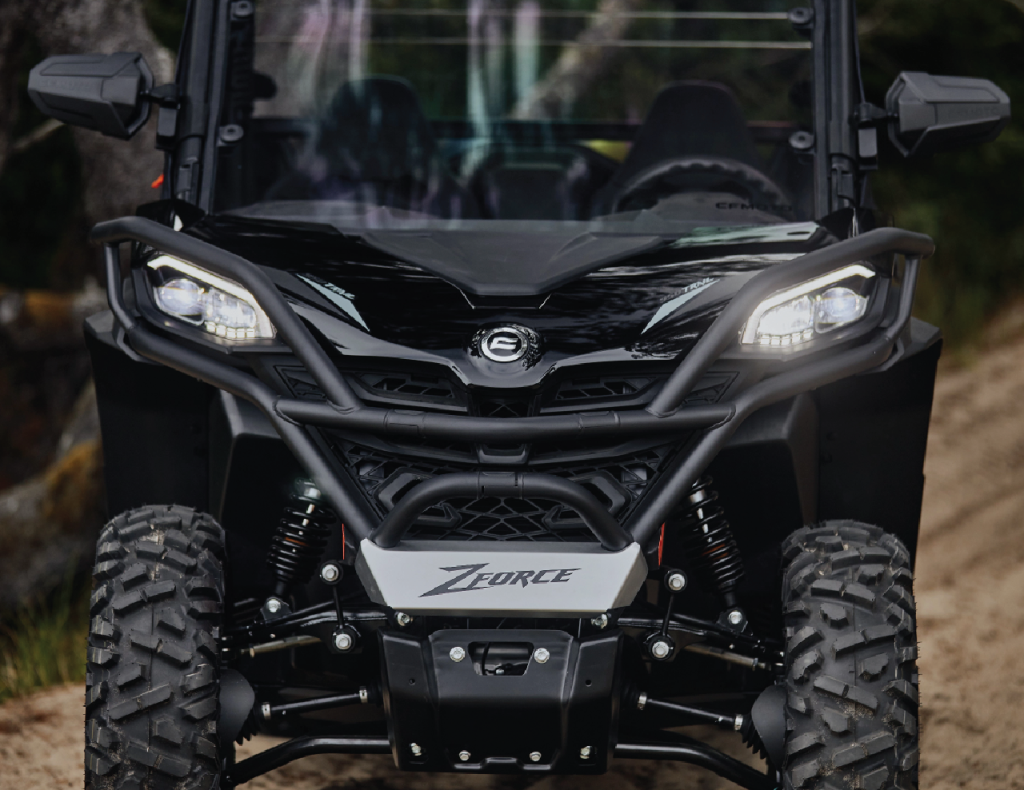

BUMPER
Optimize the protection of your side-by-side by adding a sturdy front and rear bumper, ensuring maximum safety during your off-road outings.
Type: 4-strokes, 8 valves, liquid-cooled, SOHC, V-Twin cylinder
Displacement: 800cc
Max power: 58 hp / 7500 rpm
Max torque: 50 lb-ft / 5750 rpm
Bore & Stroke: 91 x 61.5 mm (3.5 x 2.4 in)
Compression: 10.3:1
Engine management: Fuel injected engine
Cooling system: Liquid
Starting: Electric
Battery: 30 Ah
Length x Width x Height: 3065 x 1385 x 1820 mm (120.6 x 54.5 x 71.6 in)
Wheelbase: 2286 mm (90 in)
Ground clearance: 254 mm (10 in)
Minimum turning radius: 4700 mm (185 in)
Fuel tank capacity : 37 L (9.77 gal)
Curb weight : 623 kg (1373 lbs)
Towing capacity: 680 kg (1500 lbs)
Rear cargo box capacity: 150 kg (330.6 lbs)
Clutch: CV-Tech IBC clutch system: variable transmission
Gear box: P / R / N / H / L (parking lock shift system)
Power train: 2WD / 4WD, locking front differential
Front wheels: Aluminum alloy (14 x 7 in)
Rear wheels: Aluminum alloy (14 x 8 in)
Front tires: 26 x 8-14
Rear tires: 26 x 9-14
Front Suspension: Double A-arm independent
Front travel: 255 mm (10.03 in)
Rear suspension: Double A link rod suspension
Rear travel: 305 mm (12 in)
Steering: Variable Electric Power Steering (EPS)
Brakes: Four wheel brake disc
Dashboard: 5'' LCD
Lights: LED headlight with integrated turn signals
App control: CFMOTO Ride app connectivity
Protection Plan: EASY protection plan available
