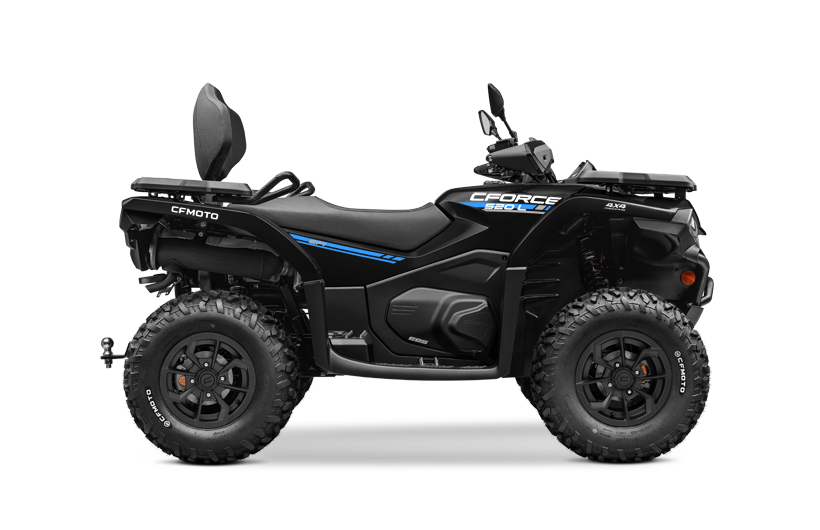

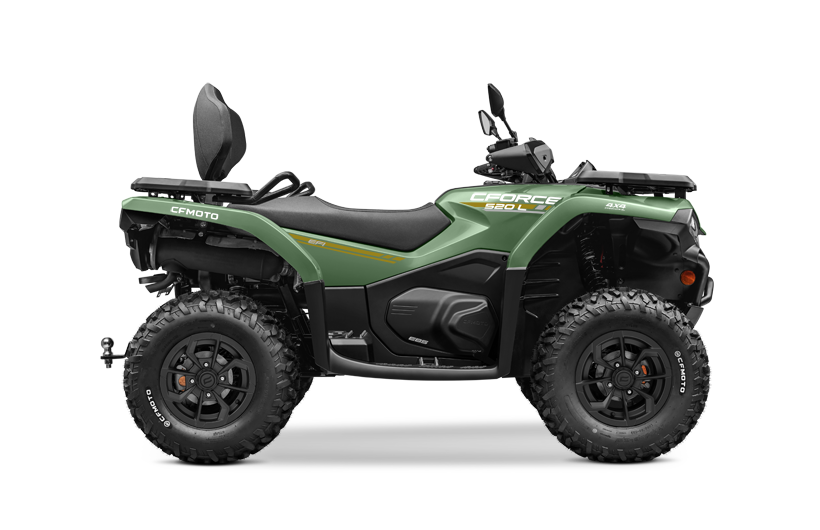

The all-new CFORCE 500 BASE all-terrain off-road vehicle.
The CFORCE 500 BASE's unruly nature is fully realized. Its comprehensive off-road capabilities allow it to bravely take the lead in any situation, fearlessly forging ahead. Beyond adventure and fun, the vehicle's flexibility, load capacity, and reliability demonstrate its versatility.
Power Upgrade for Hardcore Driving
Equipped with a powerful 495cc single-cylinder engine;
Delivering 34 horsepower and equipped with Bosch EFI;
Continuously Variable Transmission for smooth shifting.
Bold exterior, compact silhouette
LED lights, a robust grille, and a front bumper are integrated into the vehicle.
The compact design and bold, sharp styling exude a dynamic presence from the inside out.

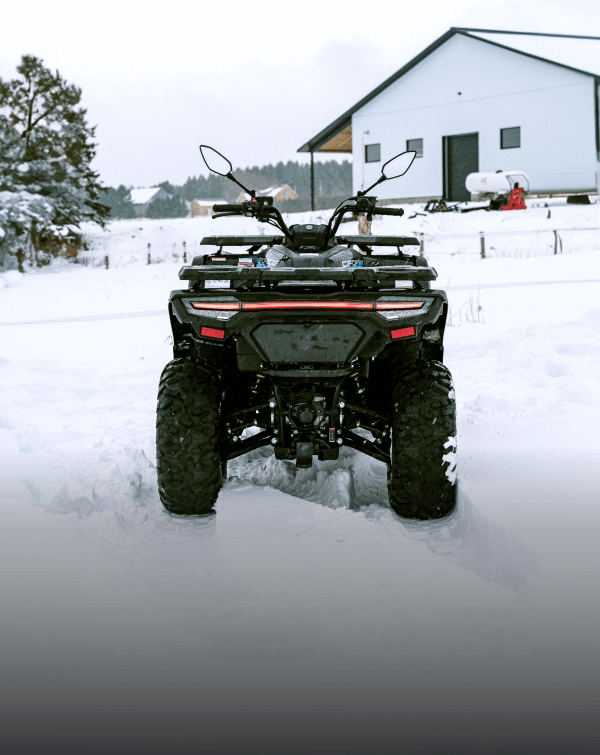

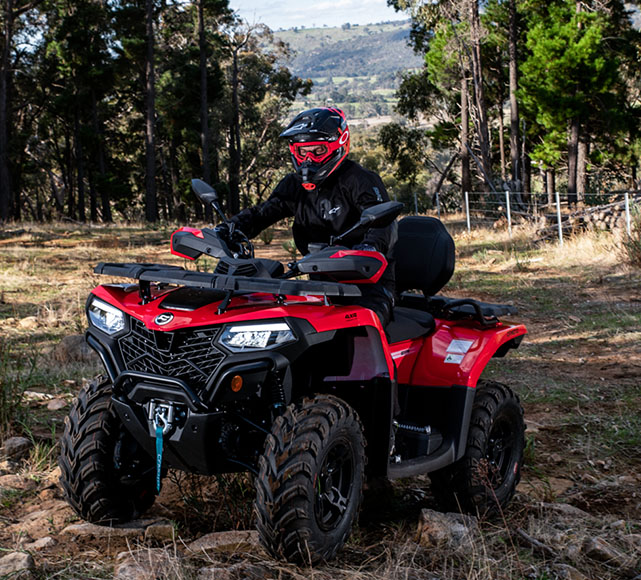

Off-road performance for any terrain
Front and rear double wishbone independent suspension;
190mm front, 225mm rear suspension travel;
82° approach angle

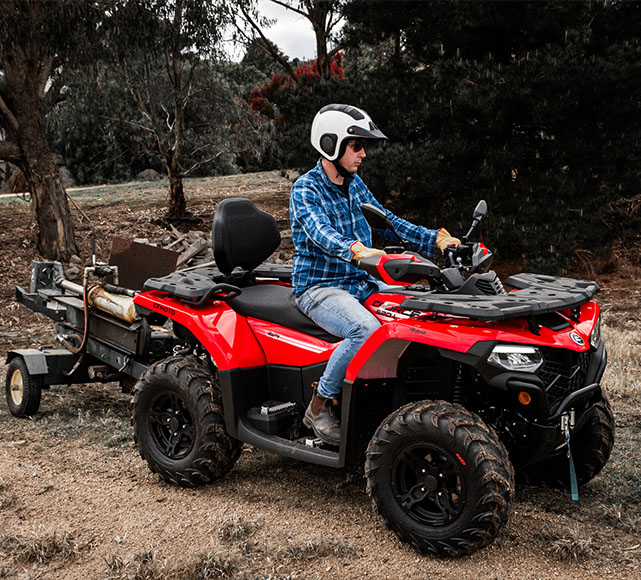

Multi-Load, Sturdy and Durable
The front and rear high-strength cargo racks have a load capacity of 30kg and 60kg, respectively;
The traction capacity is 612kg.
The frame is made of alloy steel, which is lightweight, strong, and durable.
FRONT BUMPER
A sturdy powder-coated steel addition that can be fixed over existing points, providing complete front end and headlight protection.
WINDSHIELD
In addition to being easily installed, the polycarbonate windshield is designed to work with front rack accessories.
LUGGAGE RACKEXTENSION
Expand available storage space by attaching the extender to the passenger seat, making installation quick and with no effort.

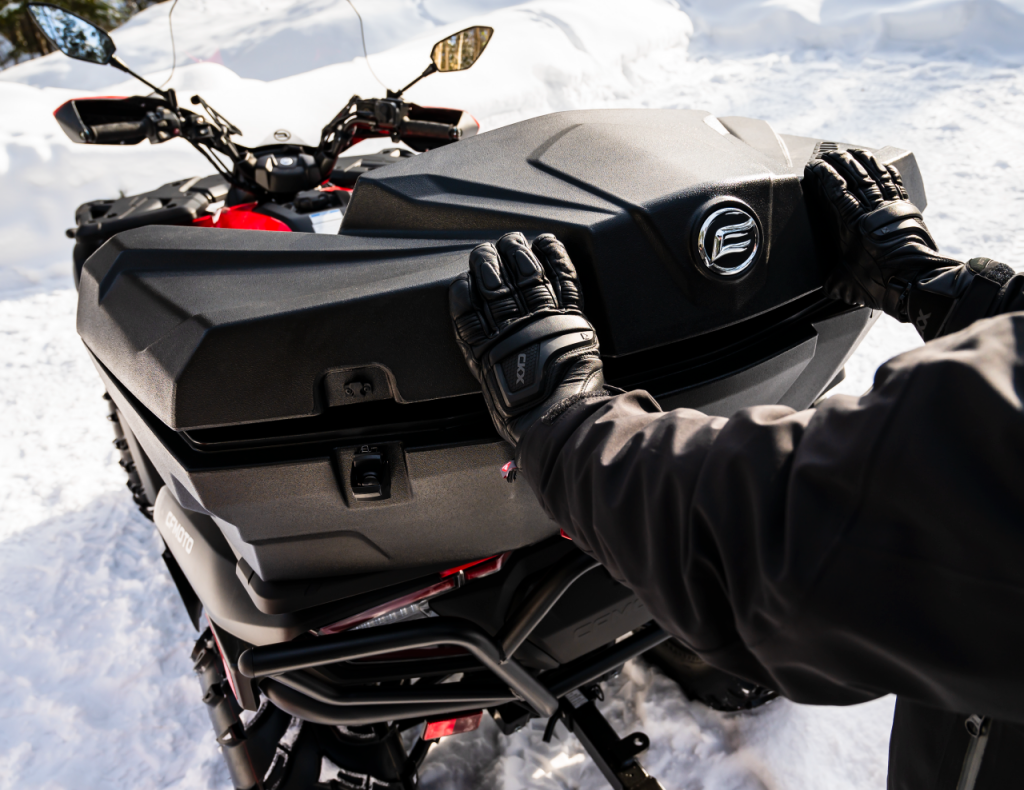

STORAGE BOX
Choose an easy-access box with a large storage capacity and quick installation thanks to the 4 included CF connector clamps.
SNOW PLOW KIT
This winter, clear snow with ease with a snow plow kit, including a mounting plate and a push frame that can be adapted to your needs with a set of snow plow fenders, a snow deflector and more.
FRONT CARGOBASKET
The front cargo basket is the perfect accessory for yourCFORCE 400/500.Offering a large storage space capacity, it can hold up to three open-faced helmets and it is made from durable and robust plastic.
Type: 4-stroke, 4-valve, liquid-cooled, Single cylinder
Displacement: 495cc
Max power: 34 hp / 6800 rpm
Max torque: 29 lb-ft / 6000 rpm
Bore & Stroke: 91 x 76.5 mm (3.58 x 3,01 in)
Compression: 10.3:1
Engine management: Fuel injected engine
Cooling system: Liquid
Starting: Electric
Battery: 30 Ah
Length x Width x Height: 2046 x 1125 x 1150 mm (80 x 44 x 45 in)
Wheelbase: 1260 mm (50 in)
Ground clearance: 262 mm (10 in)
Minimum turning radius: 2800 mm (110 in)
Fuel tank capacity : 17 L (4,5 gal)
Curb weight : 343 kg (756 lbs)
Towing capacity: 612 kg (1349 lbs)
Rack capacity: Front 30 kg (66 lbs), Rear 60 kg (132 lbs)
Clutch: CV-Tech IBC clutch system: variable transmission
Gear box: P / R / N / H / L (parking lock shift system)
Power train: 2WD / 4WD, electric locking differential
Front wheels: Aluminum alloy (12 in)
Rear wheels: Aluminum alloy (12 in)
Front tires: 25 x 8-12
Rear tires: 25 x 10-12
Front Suspension: Double A-arm independant
Front travel: 180 mm (7.08 in)
Rear suspension: Double A-arm independant
Rear travel: 180 mm (7.08 in)
Steering: Electronic Power Steering (EPS)
Brakes: Four wheel brake disc
Front Brake: Double-dsic
Rear Brake: Single-disc
Ignition: Electronic
Dashboard: 5'' dashbaord
Horn: Yes
Lights: LED headlight with integrated turn signals
USB Port: USB-C
12V socket: Yes
Protection Plan: EASY protection plan available
ATV CFORCE 800 TOURING
The all-new CFORCE 800 TOURING all-terrain off-road vehicle. Yearning for tThe new CFORCE 800 TOURING offers more power, innovation and unbeatable functionality for unmatched off-road excitement. Enjoy this new version with increased horsepower and torque and a fully redesigned CVT transmission for seamless power distribution. With unmatched aesthetics, functionality, and value, it transforms any adventure into…
ATV CFORCE 1000 TOURING
The all-new CFORCE 1000 TOURING all-terrain off-road vehicle. The new CFORCE 1000 TOURING provides more than ultimate performance; it’s a superior balance between power, innovation, and luxury. Experience unmatched power with its new high-output twin-cylinder engine that delivers apex performance. It’s the ultimate touring machine. ADVANCED ELECTRONICS Discover the Dynamic Downhill Assist, a smart feature that…

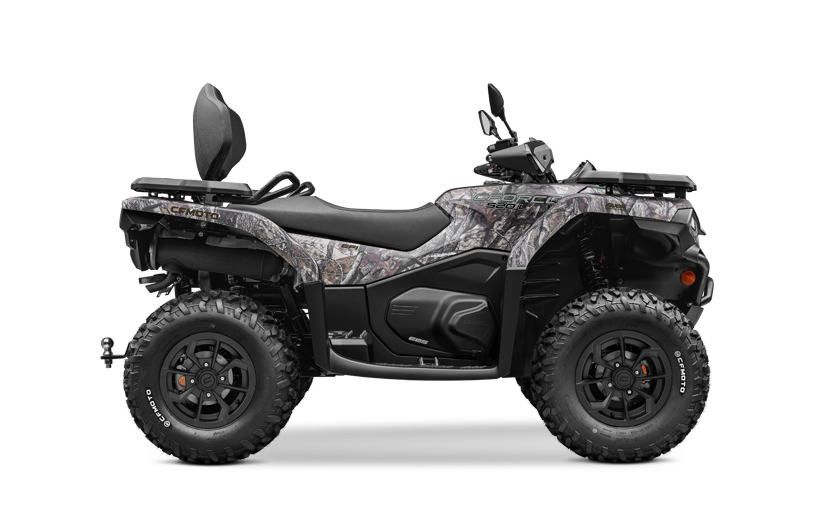

ATV CFORCE 600 TOURING
