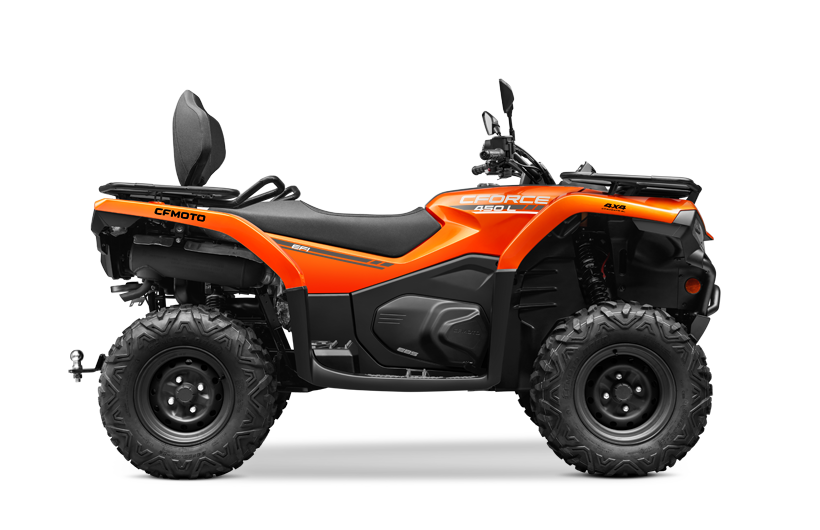

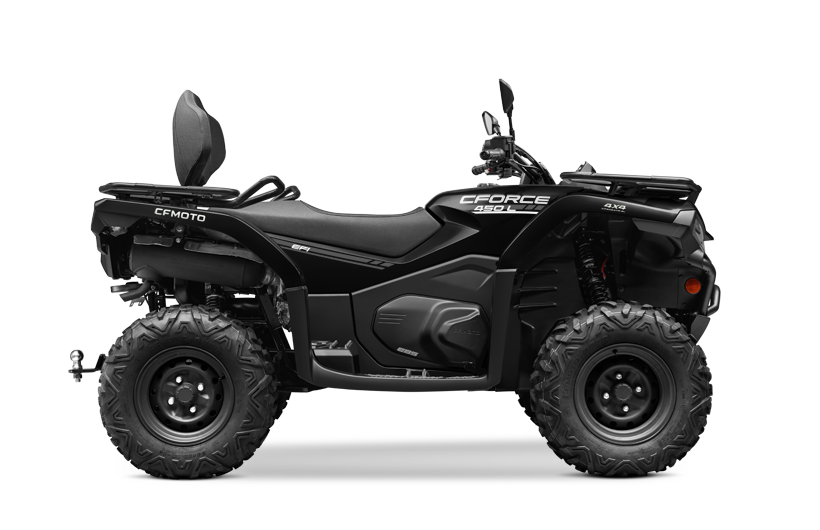

The all-new CFORCE 400 BASE all-terrain off-road vehicle.
It combines agility, comfort, and off-road fun in a boldly evolved, unleashing its full potential. With awe-inspiring control, you can ride with ease. Break free from regulations and pursue vast freedom. Leap, drift, sprint… Experience the ultimate adventure with unfettered freedom.
Powerful controllability and super driving pleasure
Minimum turning radius 6.5m.
Steering effort reduced by 25%.
This optimized design gives this ATV enhanced maneuverability and more nimble steering, making it more adaptable to complex terrain.
Excellent off-road performance, delivering ultimate pleasure
The approach angle reaches 83°.
Suspension travel has been increased by 26%, and the ATV utilizes an independent suspension with arched A-arms.
These features give the ATV greater maneuverability in complex terrain and provide an ultimate off-road experience.
NVH optimization throughout the vehicle, providing a comfortable experience
The R&D team's radiator improvements have reduced leg temperature by 25%.

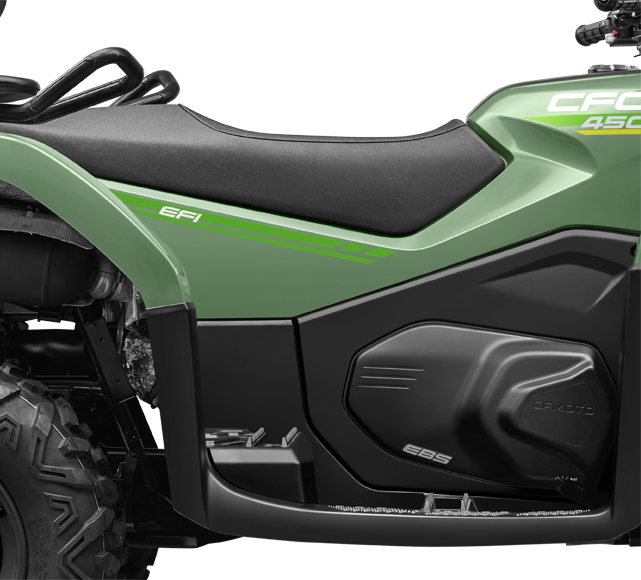

The seat cushion has been increased by 40%, and the lumbar support has been widened.
These optimized designs give this ATV a driving experience that surpasses its peers.
Overall upgrade of body strength
The frame is made of alloy steel, increasing strength by 30% and reducing weight by 10%.
The fuel tank capacity has been increased to 17L, and the frame design has been narrowed to provide more legroom.
Towing capacity reaches 612kg.

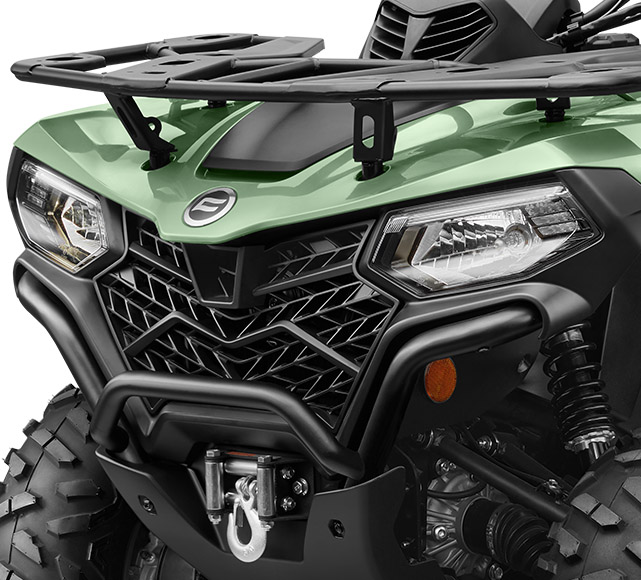

FRONT BUMPER
A sturdy powder-coated steel addition that can be fixed over existing points, providing complete front end and headlight protection.
WINDSHIELD
In addition to being easily installed, the polycarbonate windshield is designed to work with front rack accessories.
LUGGAGE RACKEXTENSION
Expand available storage space by attaching the extender to the passenger seat, making installation quick and with no effort.
STORAGE BOX
Choose an easy-access box with a large storage capacity and quick installation thanks to the 4 included CF connector clamps.
SNOW PLOW KIT
This winter, clear snow with ease with a snow plow kit, including a mounting plate and a push frame that can be adapted to your needs with a set of snow plow fenders, a snow deflector and more.
FRONT CARGOBASKET
The front cargo basket is the perfect accessory for yourCFORCE 400/500.Offering a large storage space capacity, it can hold up to three open-faced helmets and it is made from durable and robust plastic.
Type: 4-strokes, 4-valves, liquid-cooled, Single-cylinder
Displacement: 400cc
Max power: 30 hp / 7200 rpm
Max torque: 22 lb-ft / 6000 rpm
Bore & Stroke: 91 x 61.5 mm (3.58 x 2.42 in)
Compression: 10.3:1
Engine management: Fuel injected engine
Cooling system: Liquid
Starting: Electric
Battery: 30 Ah
Length x Width x Height: 2246 x 1125 x 1205 mm (88 x 44 x 47 po)
Wheelbase: 1460 mm (57 in)
Ground clearance: 250 mm (9.8 in)
Minimum turning radius: 3250 mm (127.9 in)
Fuel tank capacity : 17 L (4,5 gal)
Curb weight : 346 kg (763 lbs)
Towing capacity: 612 kg (1349 lbs)
Rack capacity: Front 30 kg (66 lbs), Rear 60 kg (132 lbs)
Clutch: CV-Tech IBC clutch system: variable transmission
Gear box: P / R / N / H / L (parking lock shift system)
Power train: 2WD / 4WD, electric locking differential

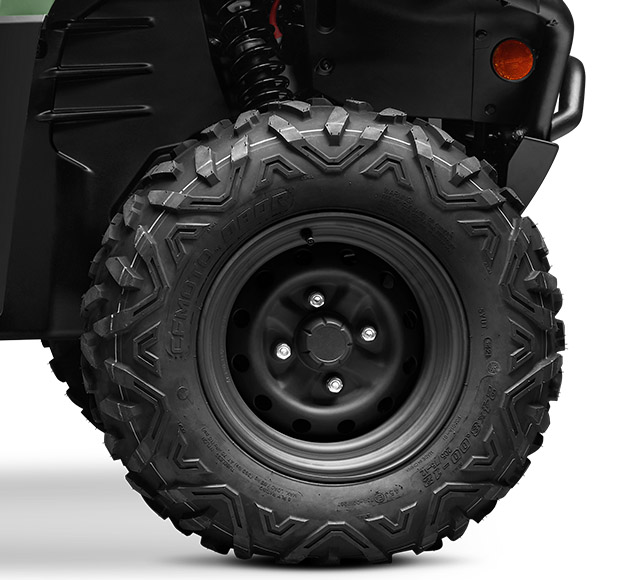

Front wheels: Aluminum alloy (12 in)
Rear wheels: Aluminum alloy (12 in)
Front tires: 25 x 8-12
Rear tires: 25 x 10-12
Front Suspension: Double A-arm independant
Front travel: 190 mm (7.5 in)
Rear suspension: Double A-arm independant
Rear travel: 225 mm (8.9 in)
Steering: Electronic Power Steering (EPS)
Brakes: Disc brakes
Dashboard: 3.5'' dashboard
Lights: Halogen
Protection Plan: EASY protection plan available
